BUILT FOR ADVENTURE!

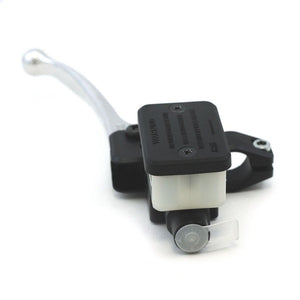

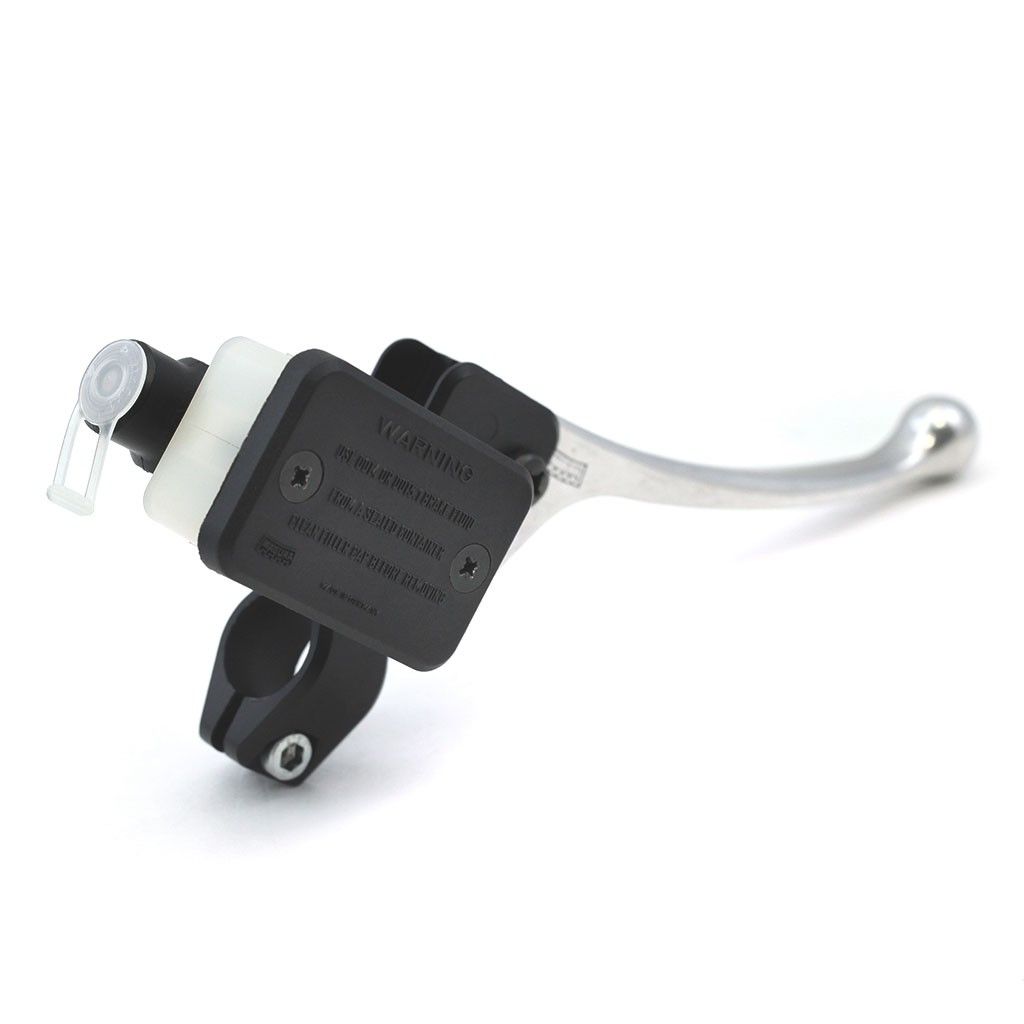

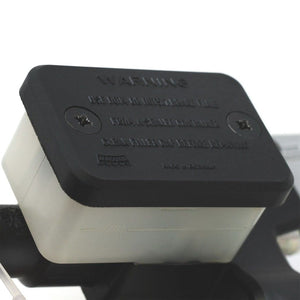

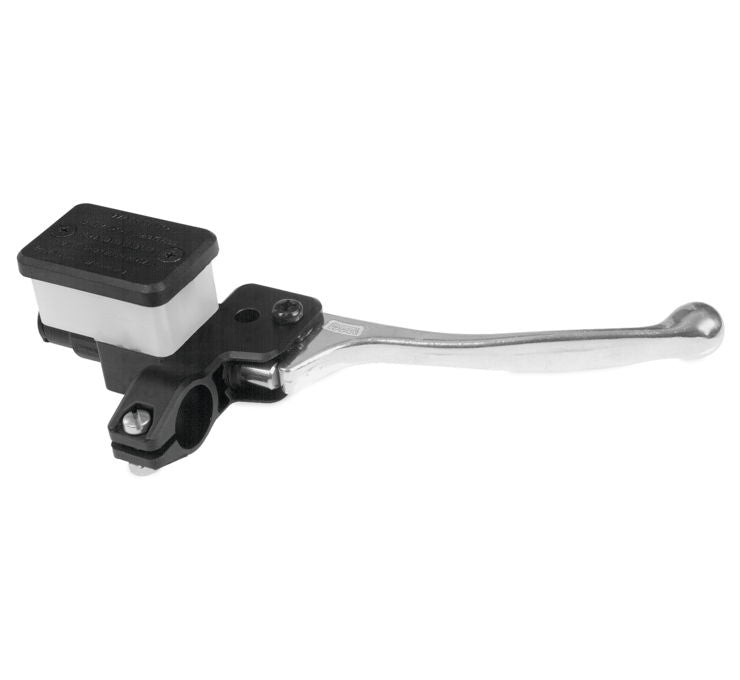

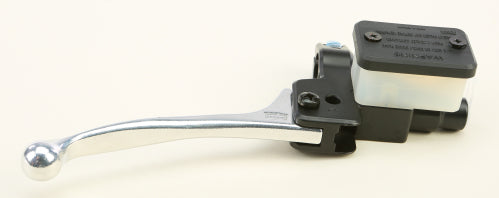

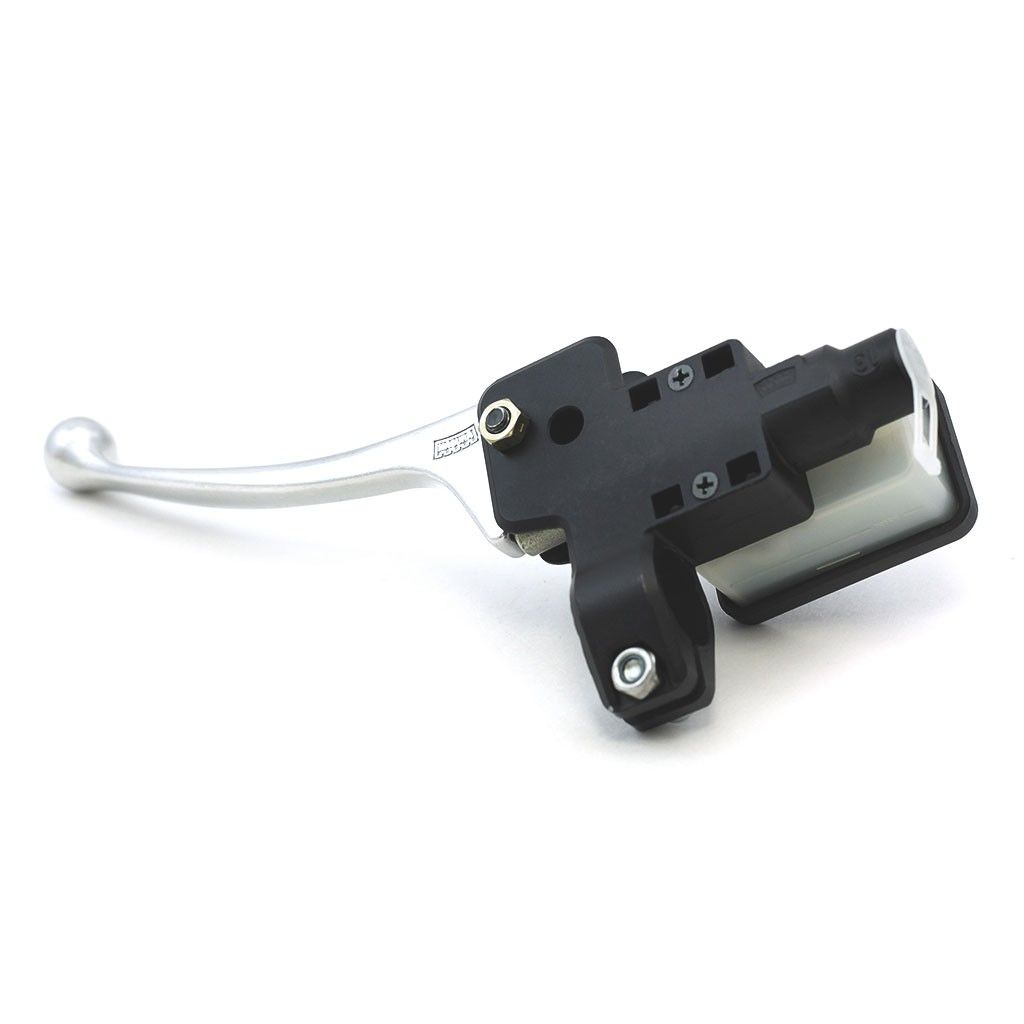

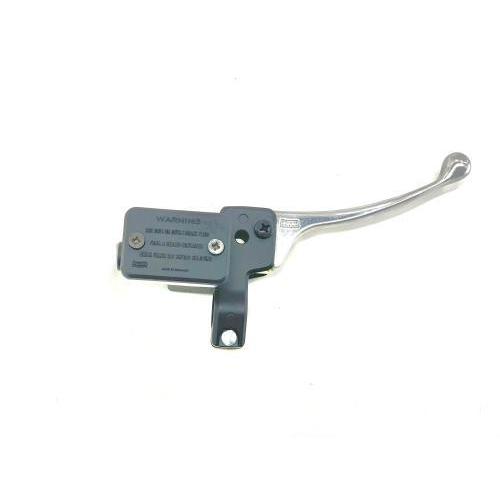

The Magura Hydraulic Brake Lever Assembly (13mm Master Cylinder) for the Right Hand (RH) is hand-crafted in Germany and made of a polished alloy body with black painted housing.
These polished alloy levers come with an 8.1 mm hole that can be threaded to 8mm or.10mm for the rear-view mirror.22 mm clamps with plastic brake fluid reservoir.
They come with a compact lightweight design, complete with brake switch, matching 10 x 1.0 Banjo Bolt, and banjo bolt washers (2 pieces). Ideal for routine replacement, street tracker, or custom build use.
Compatibility:
These units replace the original types on bikes with single disk master cylinders - including Yamaha XS650, Kawasaki KZ900, KZ650, Honda CB500, and CB750. They also work with smaller bikes like the KZ400, CB360, CB400F, RD250, RD350, RD400, and many more.
Product Features:
- Alloy body master cylinder with 13mm diameter piston; nylon fluid reservoir
- Threaded for brake light switch
- M10x1 outlet thread
- Fits 7/8 in. handlebars
- Nylon fluid reservoir
- Use DOT brake fluid
- Expertly made in Germany
- Note: Requires brake light switch for street use; not threaded for mirror mounts
- Note: Mirror Mount Hole Requires 10mm x 1.0 Banjo Bolt
Technical Features:
- Manufacturer: Magura
- Color/Finish: Polished Lever, Black Perch, and Reservoir Cap
- Material: Aluminum, Alloy body master cylinder
- Type: Brake Lever
- Style: Assembly
- Actuation: Hydraulic
- Fits: 7/8" Bars
- Dimensions: Diameter: 13mm / Outlet Thread: M10 x 1.0
- Item Weight: 11.2 ounces
- Shipping size (L x W x H): 9.00 x 6.00 x 3.00 inches
- Manufacturer Part Number : 0222000

Why these Levers are Yammie Approved:
✓ They’re High Grade! Thanks to a machined aluminum body, these master cylinders ensure a lightweight design combined with maximum rigidity that’s built to last.
✓ Super Fast Install! The typical installation time takes only about 30 minutes for DIYers.
✓ They Give You Options! With units designed to replace the original types on bikes with single disk master cylinders.
✓ They’re Expertly Made! Feel good knowing that these levers will be durable being hand-crafted with pride in Germany.
